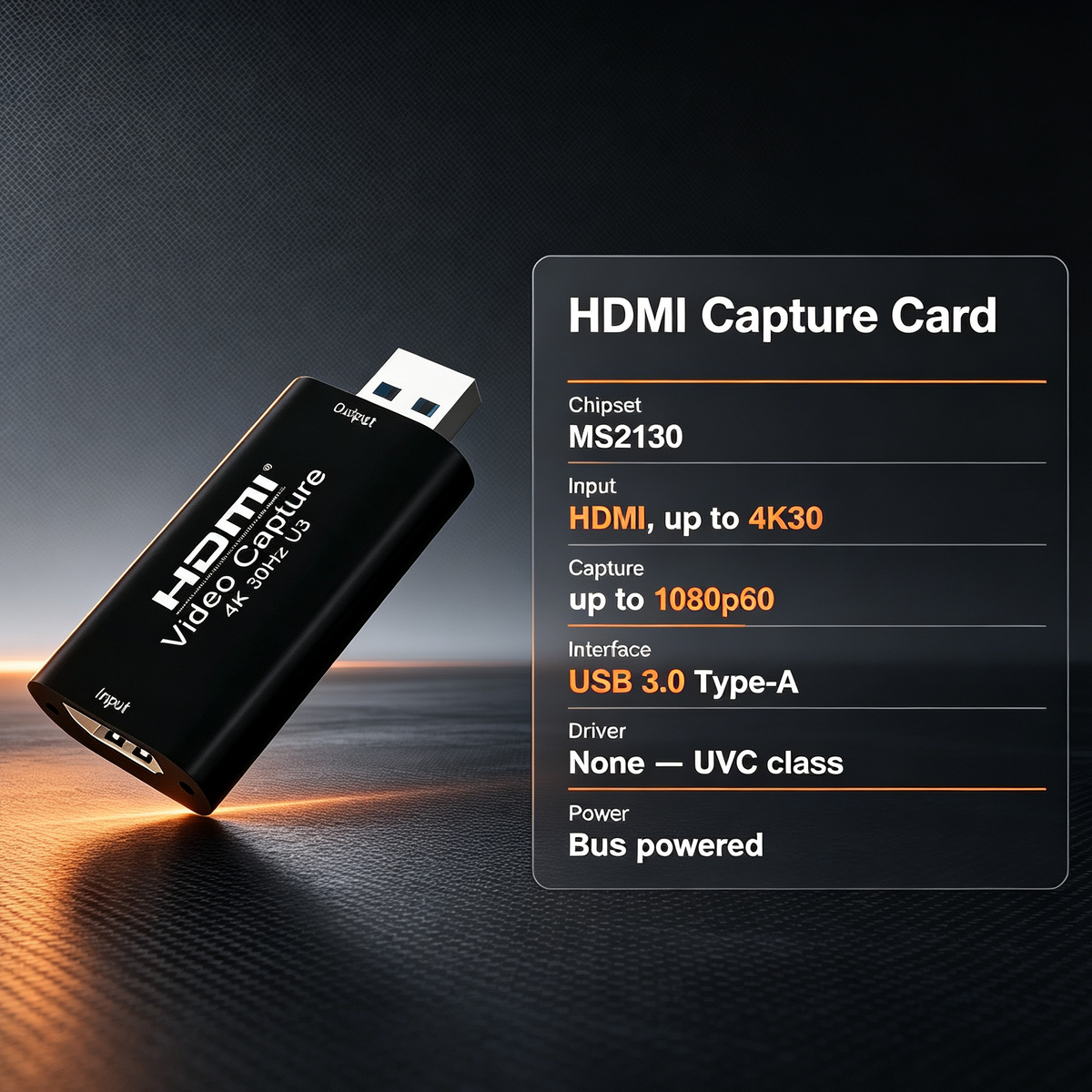

What it is
An HDMI capture card built on the MS2130. It turns the HDMI output of any machine into a standard USB video device — the computer being captured sees nothing, and the computer doing the capturing sees a webcam.
This is the card that ships inside every Beacon KVM device, and the one our software is developed against. Buy it on its own if you need a spare, or if you are building the free Raspberry Pi version.
Specifications
| Chipset | MS2130 |
| Input | HDMI, up to 4K30 |
| Capture | Up to 1080p60 |
| Interface | USB 3.0 Type-A |
| Power | Bus powered — nothing else to connect |
| Driver | None — UVC class |
Works with
Anything that reads a USB video device: Beacon KVM, OBS, ffmpeg, ustreamer. No driver and no software to install, on any operating system.
In the box
The capture card. Nothing else — you supply the HDMI and USB cables.
Shipping & returns
Ships within 3 business days, tracked, worldwide. Duties and taxes are included in the price. 30 days to return it, in the original packaging, return shipping paid by you. 12 months warranty.
Questions: support@beacon-kvm.com
